Dual Process Simulator KI-101

Looking for a low cost and configurable pilot plant
... or an analogue computer to test your controller

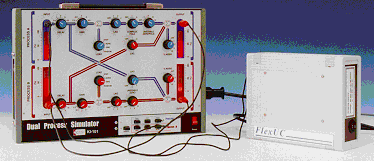

Dual Process Simulator KI-101

FEATURES

  • Two processes A & B can be used INDEPENDENTLY, CASCADED or COUPLED as a two-by-two multi-variable system
  • Processes synthesized from process elements which simulates both linear and non-linear dynamics
  • Process elements for simulating load disturbance and measurement noise
  • Well planned front panel for quick configuration or changing of process dynamics
  • Connection to a computer via RS232 for data and trend logging
  • Portable unit which can be readily brought to the field to demonstrate the performance of a controller or to troubleshoot a faulty controller
    •

    Technical Specifications

    Theory of Operations

    Applications

    Software Support Available

    Application Notes

    Technical Specifications

    Inputs Voltage: 0-5 volts dc
    Resistance: 150 Kohms (min.)
    Accuarcy: ±0.3% of full span
    Outputs Voltage: 0-5 volts dc
    Current: 20 mA (max. source and sink)
    Accuarcy: ±0.3% o full span
    Time constants Accuarcy: ±0.0005% o full span
    Power supply Voltage: 100-240 volts ac. 50/60Hz
    Current: 0.72A @ 100V (typical) or 0.36A @ 200V (typical)
    Power: 30watts (max.)
    Operating conditions Normal: 15-25°C @ 45-90%RH
    Max. Limits: 5-30°C @ 30-90%RH
    Transportation & storage limits: 0-70°C @10-95%RH
    Dimensions Size: 355mmL x 255mmW x 85mmH
    Weight: 5kg (approx.)

    Specifications may subject to change without notice

    Go to start of page

    Theory of Operation

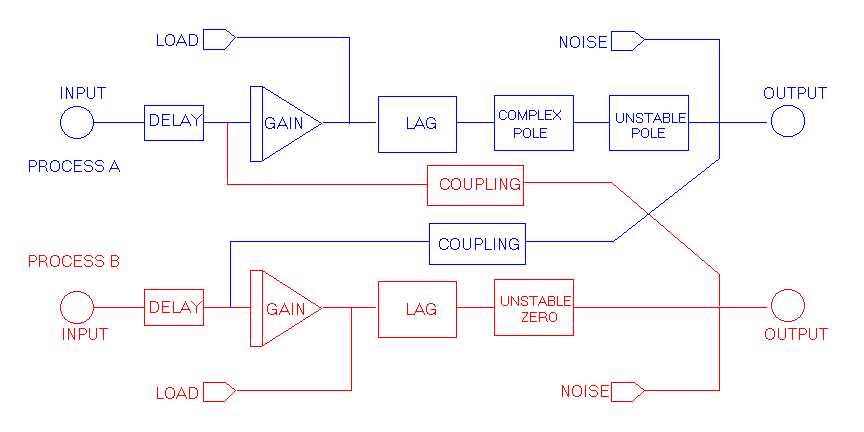

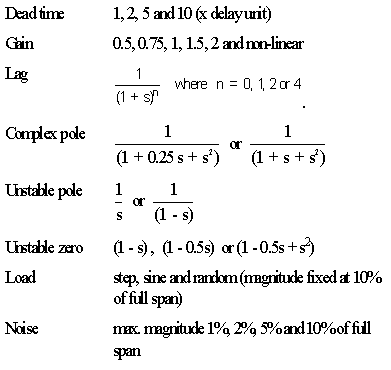

    The two simulated processes are synthesized from a generic set of process elements. These elements simulate linear process dynamics such as lag, complex pole, unstable pole, and unstable zero, ... , simulates non-linear process dynamics such as deadtime, pH-type behaviour and hysteresis, ... , simulates signal source such as load disturbance and measurement noise.

    The time scale of the two processes can also be independently set at one of three available speeds (FAST, MED and SLOW),

    Go to start of page

    Applications

    The Dual Process Simulator can be set up to simulate from a simple SISO plant to a complicated cascade control or MIMO plant. Examples of plants which can be simulated are:

    Go to start of page

    Software Support Available

    Go to start of page

    Application Notes

  • DPS100: Use of the Dual Process Simulator for Process Control Experiments
  • DPS101: Examples of Applications for the KRi Dual Process Simulator
  • DPS102: Constrained Model Predictive Control: A Demostration Experiment
  • DPS103: Experiments Using the KRi Dual Process Simulator
  • DPS104: Process Trainer System

    • Go to start of page

    Home Products Contact Latest Documentation Enquiry Form

    E-mail us for information on pricing and custom design

    The Dual Process Simulator is reproduced under license from the National University of Singapore.

    Last Updated 25 May 2000

    Copyright (c) 1997-2000. All rights reserved. KentRidge Instruments Pte Ltd.
